395nm UV LED Curing System for Epson printer DX5 print head details
|
Product Name |
395nm UV LED Curing System for Epson printer DX5 print head |
|
Product No |
YX0-8062DF |
|
Wavelength |
395nm |
|
UV Emitting window sizes |
37 mm*7.5mm |
|
Irradiance |
8 W/cm⊃2; ( 6mm from substrate to light source glass ) |
|
UV LED power |
80 W |
|
Total Power |
100 W |
|
Input voltage |
100-240V,50 HZ,60 HZ |
|
Cooling Method |
Water-cooled |
|

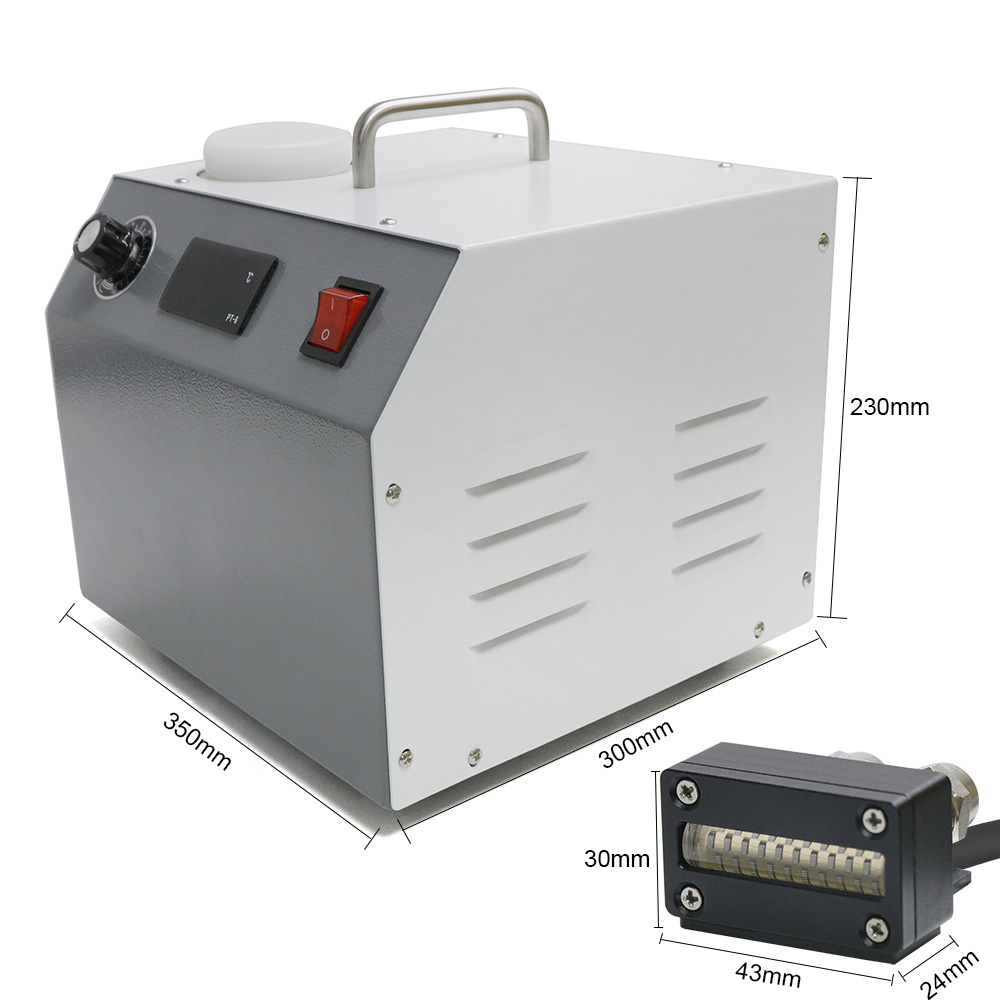

Controller size |
350*300*230 mm |
|
Warning |
Under water line E06, Flow problem E07 |
|
Water Temperature |
25 °C – 30 °C |
|
Noted: |
Customized Voltage, Hertz, Plug, Control method for difference countries, please tell us your requirements. |
|
Applications |
Coating, Printing, Adhesive etc. |
|
Customized by your unique applications |
1. Cooling Method (water-cooled / air-cooled ), |
|
2, Emitting window length ( L*W mm), |
|
|
3.Peak Irradiance ( W/cm⊃2;), |
|
|
4.Wavelength ( 365nm,375nm,385nm,395nm,410nm,415nm available), |
|
|
5.Control Method ( Switch control / 24V signal control ) |
|
|
Certificate |
CE, RoSH |
